Descriere
Cheie fixa dubla 110/1 in inch - UNIOR
• material: crom vanadiu
• forjare, calire si revenire totala
• finisarea suprafetei: acoperire cromare conform EN12540
• capete polizate
• conform standardului ISO 10102 (numai pentru dimensiunile in mm)

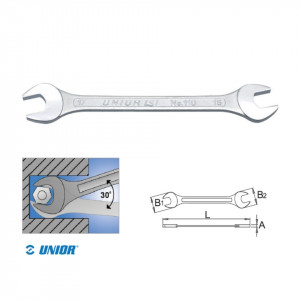

Tabel cu dimensiuni:
cod | ![]() |
L | B1 | B2 | A | greutate |
605348 | 1/4" x 5/16" | 121 | 14,4 | 16,4 | 3,4 | 15 |
618658 | 1/4" x 9/32" | 121 | 14,4 | 16,4 | 3,4 | 15 |
605349 | 5/16" x 3/8" | 140 | 18,4 | 22,9 | 3,7 | 24 |
618656 | 11/32" x 13/32" | 159 | 22,7 | 24,2 | 4,5 | 43 |
605350 | 3/8" x 7/16" | 159 | 22,7 | 24,2 | 4,5 | 40 |
605351 | 7/16" x 1/2" | 172 | 26,3 | 29,2 | 4,9 | 58 |
605352 | 1/2" x 9/16" | 192 | 31,2 | 33,2 | 5,4 | 81 |
605353 | 9/16" x 5/8" | 192 | 31,2 | 33,2 | 5,4 | 83 |
605354 | 5/8" x 11/16" | 206 | 35,7 | 37,7 | 5,7 | 108 |
605355 | 11/16" x 3/4" | 223 | 39,5 | 41,5 | 6,2 | 143 |
618657 | 3/4" x 13/16" | 232 | 43,5 | 46 | 6,7 | 183 |
605356 | 13/16" x 7/8" | 249 | 46 | 52 | 7,2 | 237 |
605357 | 15/16" x 1" | 265 | 51,8 | 55,3 | 7,7 | 301 |
605358 | 1" x 1,1/8 | 279 | 53,8 | 58,8 | 8,2 | 344 |
605359 | 1,1/16" x 1,1/4" | 309 | 62,8 | 67,3 | 9,6 | 527 |
