Descriere

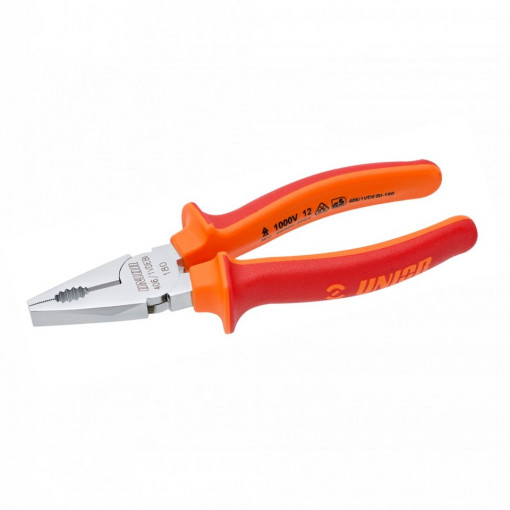

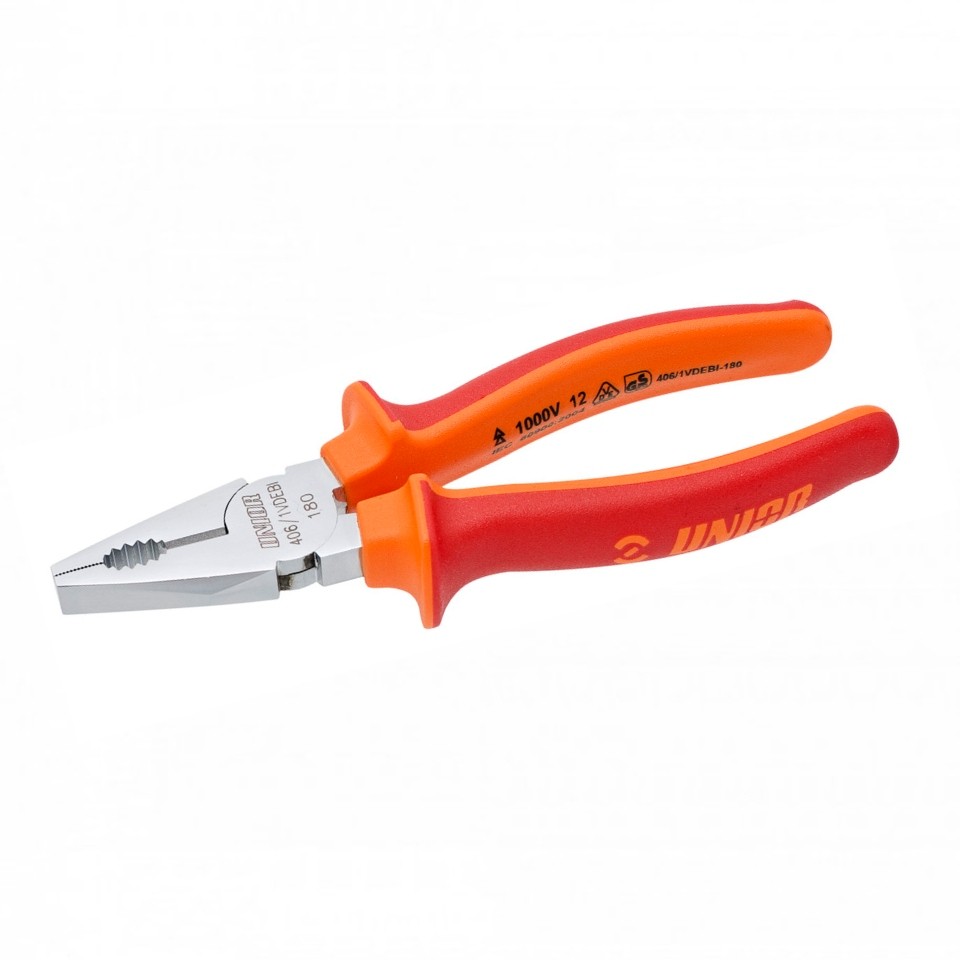

Clesti combinati izolati la 1000 V - 406/1VDEBI - UNIOR
- material: compozitie speciala pentru calire revenire
- tratat complet
- partile taietoare tratate prin inductie
- cap polizat
- finisare: cromat in conformitate cu standardul ISO 1456:2009
- manere bimaterial pentru conditii grele
- in conformitate cu standardul ISO 5746 si EN 60900:2004
Standarde
EN60900:2005

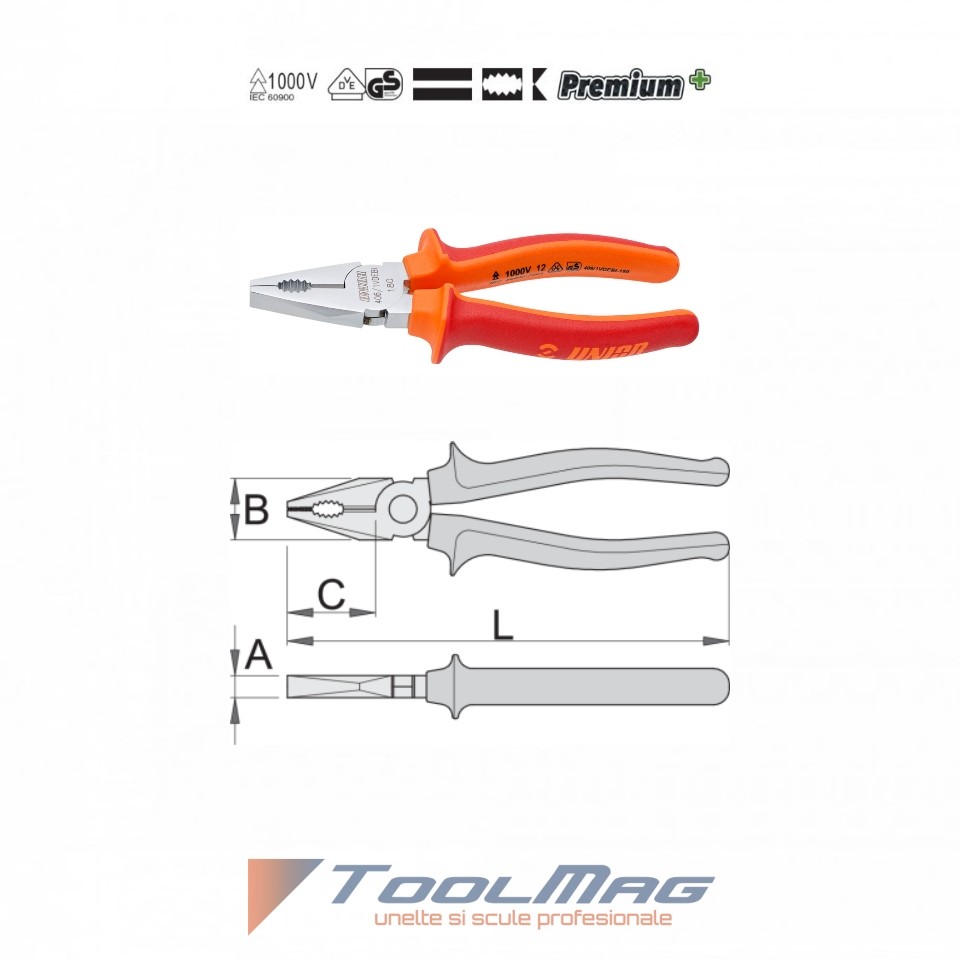

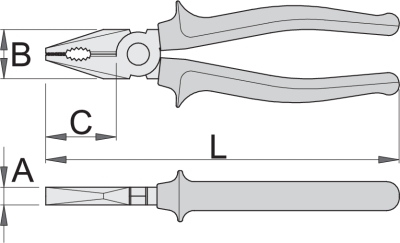

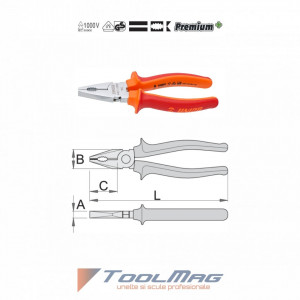

Tabel cu dimensiuni:
cod | L | B | C | A | greutate |
---|---|---|---|---|---|
610421 | 160 | 24 | 35 | 9.5 | 224 |
610422 | 180 | 27 | 38 | 10 | 274 |
610423 | 200 | 29 | 41 | 10.5 | 344 |
610424 | 220 | 32 | 47 | 11 | 424 |

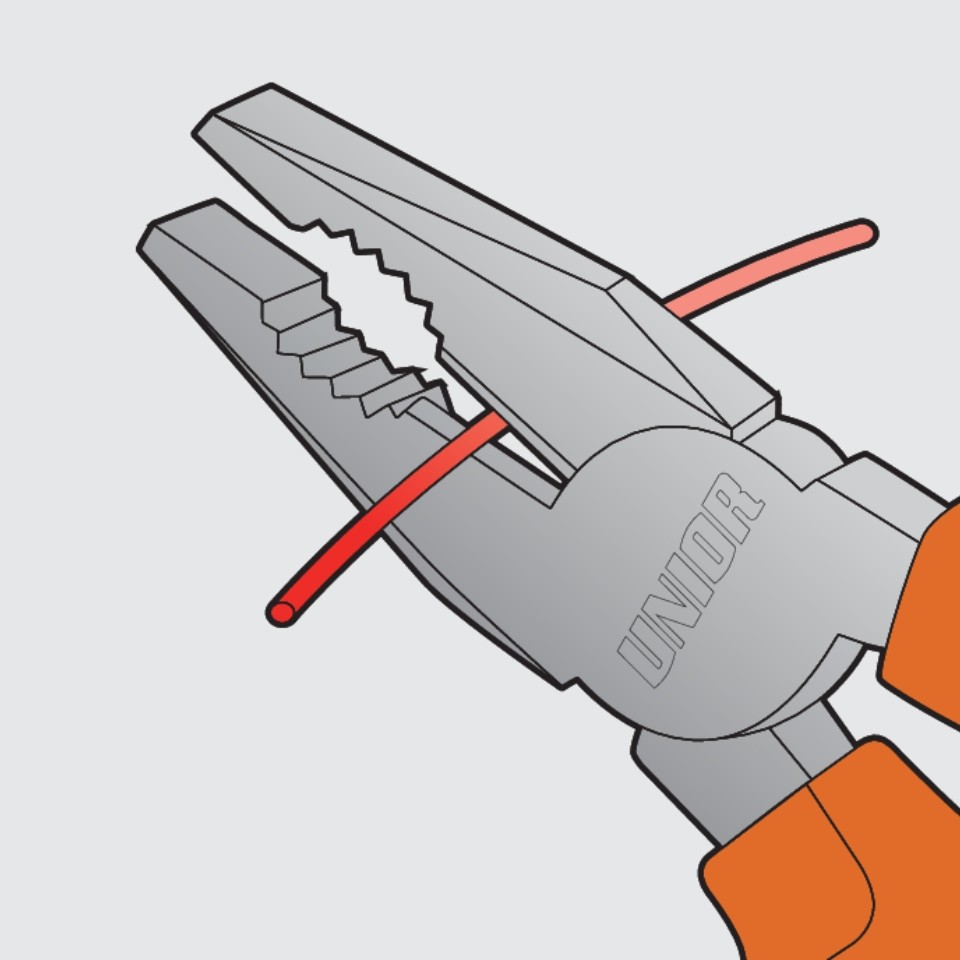

capacitatea de taiere (10N=1kg)
cod | L | max 1600 N/mm² Ø↑ | max 650 N/mm² Ø↑ |
---|---|---|---|
610421 | 160 | 1,6 | 2,0 |
610422 | 180 | 1,8 | 2,5 |
610423 | 200 | 2,0 | 2,5 |
610424 | 220 | 2,0 | 3,0 |
Toate dimensiunile sunt exprimate în mm, greutatea în grame.
