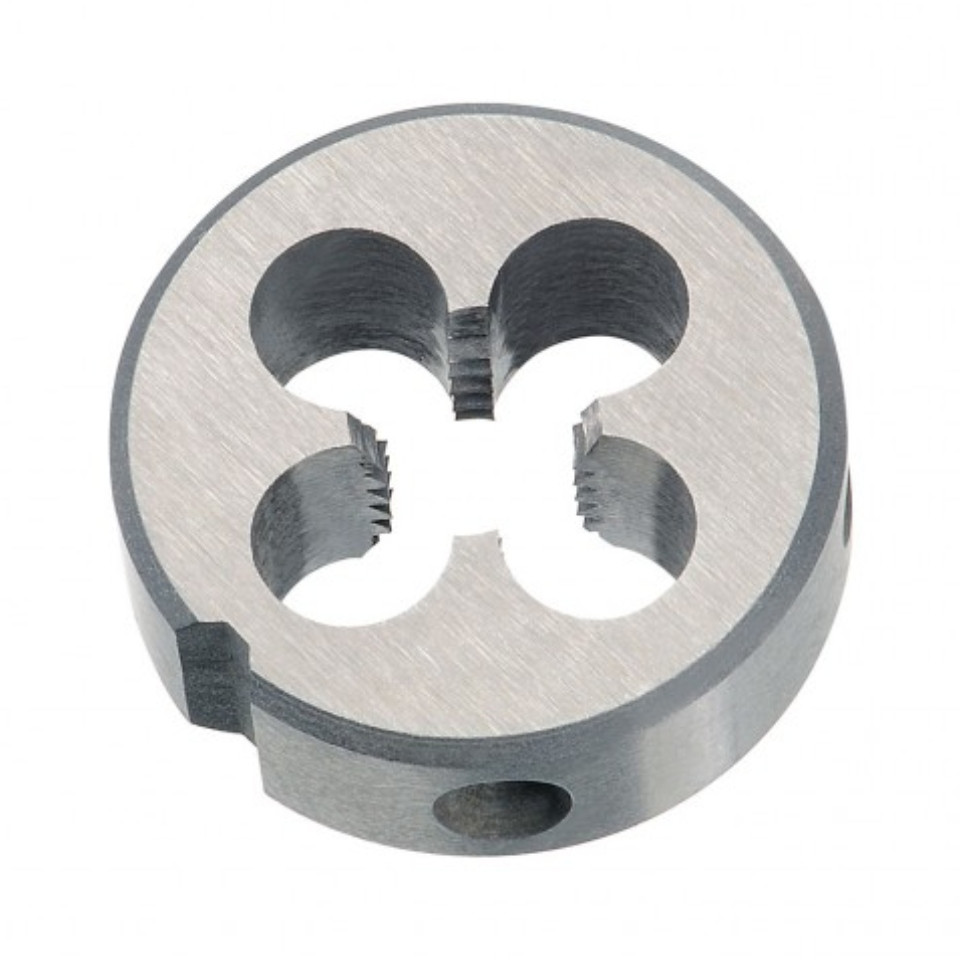

Filiera forma B, filet Whitworth BSW, DIN 223 (DIN EN22568) filet pe dreapta
65,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Descriere
Filiera forma B, filet Whitworth BSW, DIN 223 (DIN EN22568) filet pe dreapta - VOLKEL
Aplicatii :
- materiale neabrazive pana la 800 N/mm²
- otel nealiat si slab aliat
- filet pe dreapta

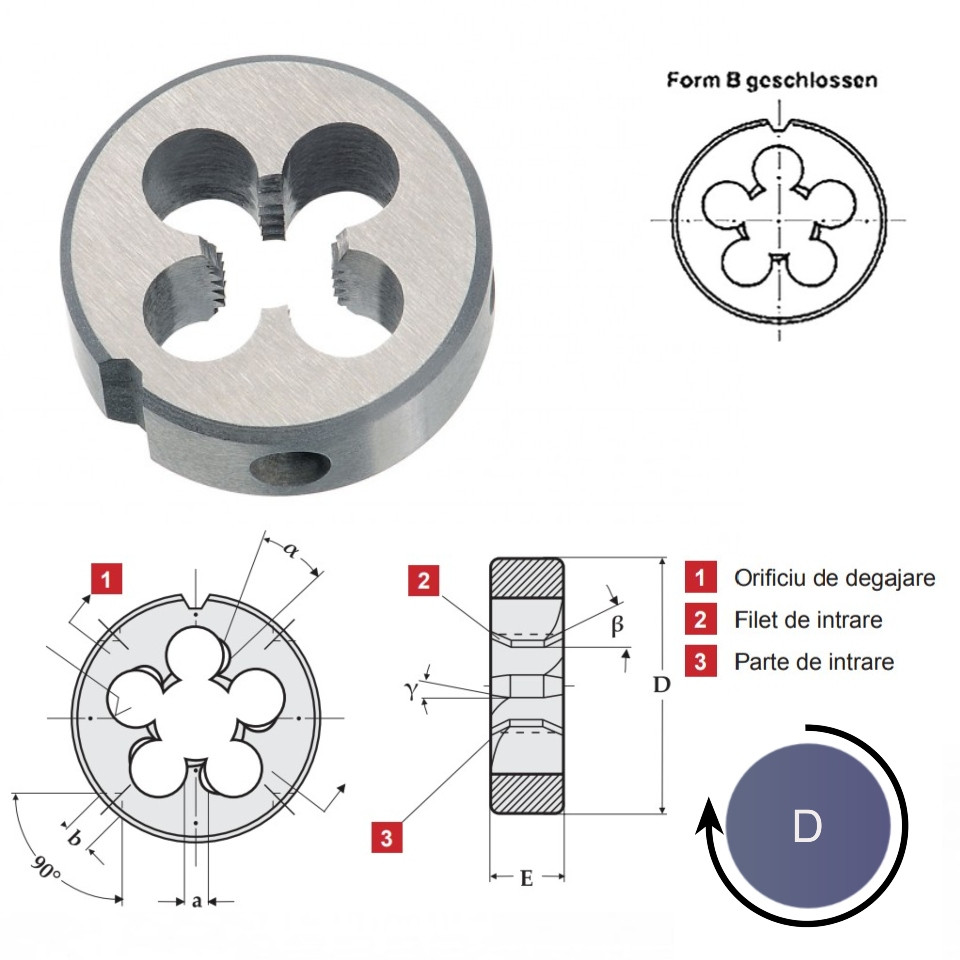

Tabel cu dimensiuni:
| SKU | Filet BSW | D x E (mm) |
| VL.22402 | BSW 1/16" x 60 | 16 x 5 |
| VL.22404 | BSW 3/32" x 48 | 16 x 5 |
| VL.22406 | BSW 1/8" x 40 | 20 x 5 |
| VL.22408 | BSW 5/32" x 32 | 20 x 5 |
| VL.22410 | BSW 3/16" x 24 | 20 x 7 |
| VL.22412 | BSW 7/32 " x 24 | 20 x 7 |
| VL.22414 | BSW 1/4" x 20 | 20 x 7 |
| VL.22416 | BSW 5/16" x 18 | 20 x 7 |
| VL.22418 | BSW 3/8" x 16 | 30 x 11 |
| VL.22420 | BSW 7/16 " x 14 | 30 x 11 |
| VL.22422 | BSW 1/2" x 12 | 38 x 14 |
| VL.22424 | BSW 9/16" x 12 | 38 x 14 |
| VL.22426 | BSW 5/8" x 11 | 45 x 18 |
| VL.22430 | BSW 3/4" x 10 | 45 x 18 |
| VL.22434 | BSW 7/8" x 9 | 55 x 22 |
| VL.22438 | BSW 1" x 8 | 55 x 22 |
| VL.22442 | BSW 1 1/8" x 7 | 65 x 25 |
| VL.22446 | BSW 1 1/4" x 7 | 65 x 25 |
| VL.22450 | BSW 1 3/8" x 6 | 65 x 25 |
| VL.22454 | BSW 1 1/2" x 6 | 75 x 30 |
| VL.22458 | BSW 1 5/8" x 5 | 75 x 30 |
| VL.22462 | BSW 1 3/4" x 5 | 90 x 36 |
| VL.22466 | BSW 1 7/8" x 4 1/2 | 90 x 36 |
| VL.22470 | BSW 2" x 4 1/2 | 90 x 36 |
| VL.22472 | BSW 2 1/4" x 4 | 105 x 36 |
| VL.22474 | BSW 2 1/2" x 4 | 105 x 36 |
| VL.22476 | BSW 2 3/4" x 3 1/2 | 120 x 36 |
| VL.22478 | BSW 3" x 3 1/2 | 120 x 36 |
