Descriere

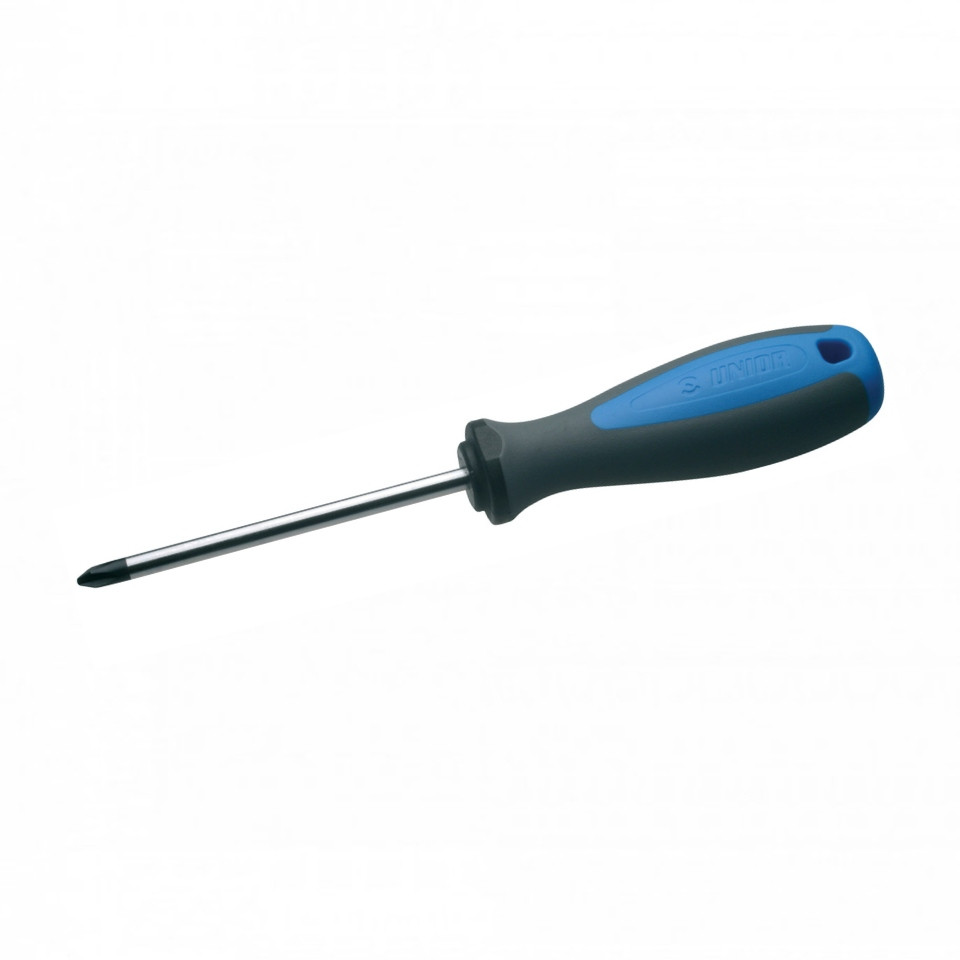

Surubelnita profil Phillips (PH) maner trimaterial TBI, cromat - 615TBI - UNIOR
• lama: otel crom vanadium molibden tratata integral
• lama cromata, varful brunat

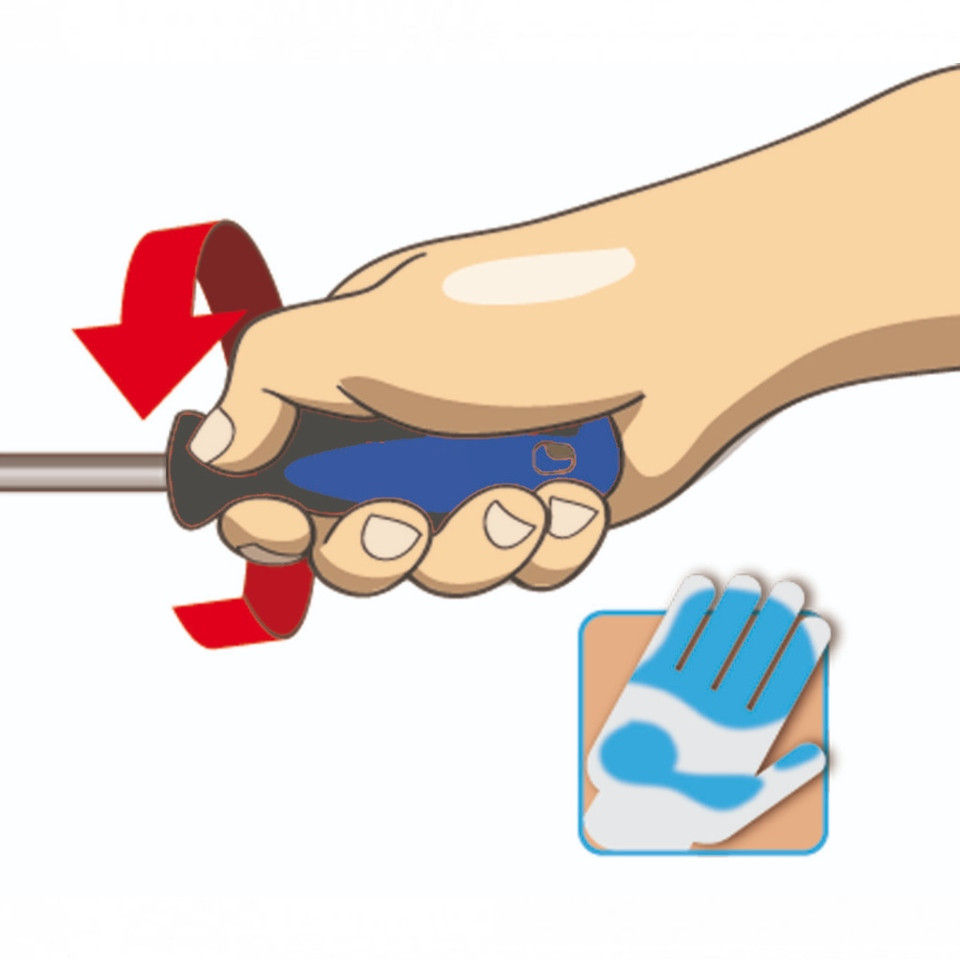

• maner: forma ergonomica
• trimaterial
• gaura de agatare
• in concordanta cu standardul ISO 8764-1,2

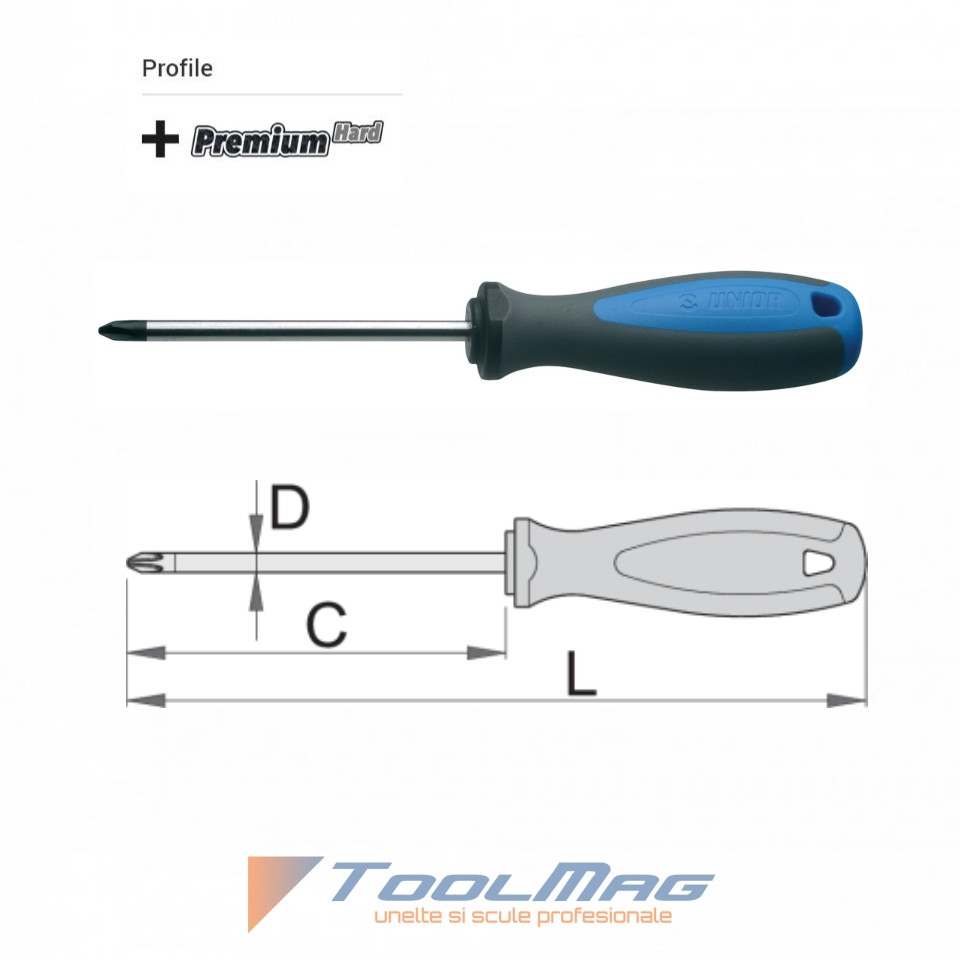

Tabel cu dimensiuni:
cod | PH | C | L | D | greutate |
---|---|---|---|---|---|
611701 | PH 0 | 60 | 145 | 3 | 34 |
611702 | PH 1 | 80 | 180 | 4.5 | 60 |
611703 | PH 1 | 200 | 300 | 4.5 | 74 |
611704 | PH 2 | 100 | 210 | 6 | 94 |
611705 | PH 2 | 150 | 260 | 6 | 104 |
611706 | PH 2 | 200 | 310 | 6 | 114 |
611707 | PH 3 | 150 | 270 | 8 | 154 |
611708 | PH 4 | 200 | 320 | 10 | 230 |
Toate dimensiunile sunt exprimate în mm, greutatea în grame.
