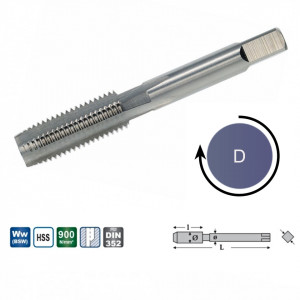

Tarod universal scurt HSS-G, filet Whitworth BSW ≈DIN 352

30,00 RON (TVA inclus)

Costurile de livrare nu sunt incluse

SKU	filet BSW	L x l x Ø x prindere (mm)	Pret cu TVA
VL.62306	BSW 1/8" x 40	40.0 x 12.0 x 3.5 x 2.7	30,00 RON
VL.62310	BSW 3/16" x 24	50.0 x 18.0 x 6.0 x 4.9	33,00 RON
VL.62314	BSW 1/4" x 20	50.0 x 19.0 x 6.0 x 4.9	33,00 RON
VL.62316	BSW 5/16" x 18	56.0 x 22.0 x 6.0 x 4.9	35,00 RON
VL.62318	BSW 3/8" x 16	70.0 x 24.0 x 7.0 x 5.5	40,00 RON
VL.62320	BSW 7/16 " x 14	70.0 x 24.0 x 8.0 x 6.2	44,00 RON
VL.62322	BSW 1/2" x 12	75.0 x 29.0 x 9.0 x 7.0	52,00 RON
VL.62324	BSW 9/16" x 12	80.0 x 30.0 x 11.0 x 9.0	64,00 RON
VL.62326	BSW 5/8" x 11	80.0 x 32.0 x 12.0 x 9.0	73,00 RON
VL.62330	BSW 3/4" x 10	95.0 x 40.0 x 14.0 x 11.0	95,00 RON
VL.62334	BSW 7/8" x 9	100.0 x 40.0 x 18.0 x 14.5	127,00 RON
VL.62338	BSW 1" x 8	110.0 x 50.0 x 18.0 x 14.5	149,00 RON

Cod produs - SKU VL.623

Adauga la Favorite

Descriere

Tarod universal scurt HSS-G, filet Whitworth BSW - DIN 352 - VOLKEL

Aplicatii :

materiale neabrazive pana la 900 N/mm²
otel nealiat si slab aliat
pentru filetare manuala si pe masini
pentru gauri strapunse si infundate

Tabel cu dimensiuni:

SKU	L x l x Ø x prindere (mm)	Filet BSW
VL.62306	40.0 x 12.0 x 3.5 x 2.7	BSW 1/8" x 40
VL.62314	50.0 x 19.0 x 6.0 x 4.9	BSW 1/4" x 20
VL.62310	50.0 x 18.0 x 6.0 x 4.9	BSW 3/16" x 24
VL.62316	56.0 x 22.0 x 6.0 x 4.9	BSW 5/16" x 18
VL.62318	70.0 x 24.0 x 7.0 x 5.5	BSW 3/8" x 16
VL.62320	70.0 x 24.0 x 8.0 x 6.2	BSW 7/16 " x 14
VL.62322	75.0 x 29.0 x 9.0 x 7.0	BSW 1/2" x 12
VL.62324	80.0 x 30.0 x 11.0 x 9.0	BSW 9/16" x 12
VL.62326	80.0 x 32.0 x 12.0 x 9.0	BSW 5/8" x 11
VL.62330	95.0 x 40.0 x 14.0 x 11.0	BSW 3/4" x 10
VL.62334	100.0 x 40.0 x 18.0 x 14.5	BSW 7/8" x 9
VL.62338	110.0 x 50.0 x 18.0 x 14.5	BSW 1" x 8
